Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDIzLTA3LTA2KzA3JTNBNDElM0EwNS42Mzc2NDElMkIwMCUzQTAw&format=api

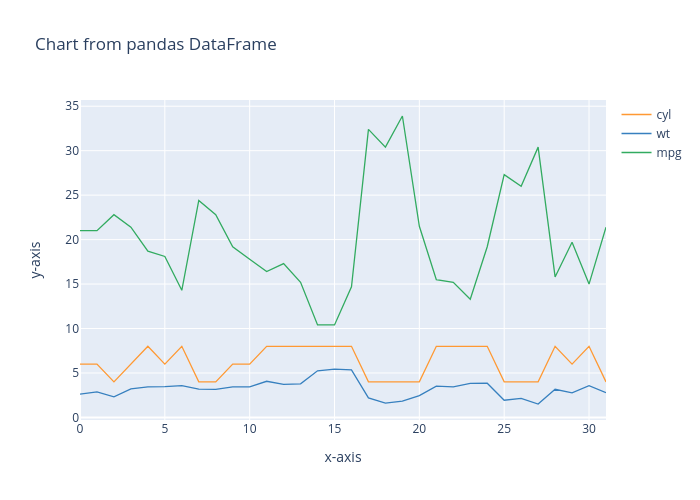

{ "next": "https://api.plotly.com/v2/plots?cursor=cD0yMDIzLTA3LTA2KzA2JTNBMjElM0EyOC44NTE4ODglMkIwMCUzQTAw&format=api", "previous": "https://api.plotly.com/v2/plots?cursor=cj0xJnA9MjAyMy0wNy0wNiswNyUzQTM3JTNBMTMuNzMxNTYwJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2023-07-06T07:37:13.731560Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~pregmi/3.embed", "fid": "pregmi:3", "filename": "cf-simple-line-chart", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/pregmi/3/9_OSUJA90QW99IE8RYRUL7CL2YRTBPUT.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/pregmi/3/2_LJRM07GRGLIBRQWMH3XRZK9T8WOYFM.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/pregmi/3/8_28H2A2GCP929VQ3EZVU1L3BU1F3JT2.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/pregmi/3/9_OSUJA90QW99IE8RYRUL7CL2YRTBPUT.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/pregmi:3", "plots": "https://api.plotly.com/v2/plots/pregmi:3", "parent": "https://api.plotly.com/v2/folders/home?user=pregmi" }, "owner": "pregmi", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 6, "web_url": "https://chart-studio.plotly.com/~pregmi/3/", "world_readable": true, "date_modified": "2023-07-06T07:37:13.741Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~pregmi/3/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "dash": "solid", "color": "rgba(255, 153, 51, 1.0)", "shape": "linear", "width": 1.3 }, "mode": "lines", "name": "cyl", "text": "", "type": "scatter", "xsrc": "pregmi:2:7b3f55", "ysrc": "pregmi:2:77fd18" }, { "line": { "dash": "solid", "color": "rgba(55, 128, 191, 1.0)", "shape": "linear", "width": 1.3 }, "mode": "lines", "name": "wt", "text": "", "type": "scatter", "xsrc": "pregmi:2:e41e2c", "ysrc": "pregmi:2:aeb902" }, { "line": { "dash": "solid", "color": "rgba(50, 171, 96, 1.0)", "shape": "linear", "width": 1.3 }, "mode": "lines", "name": "mpg", "text": "", "type": "scatter", "xsrc": "pregmi:2:25f58c", "ysrc": "pregmi:2:6228f4" } ], "layout": { "title": { "text": "Chart from pandas DataFrame" }, "xaxis": { "title": { "text": "x-axis" } }, "yaxis": { "title": { "text": "y-axis" } }, "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~pregmi", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-07-06 07:13:26", "mapbox_access_tokens": null, "has_password": null, "username": "pregmi", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T07:33:17.398612Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~anjusrivastavaa46/13.embed", "fid": "anjusrivastavaa46:13", "filename": "Plot 13", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/13/9_IXA9VQJD59BPZ3FZVWO5FWNZZ9NLSS.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/13/2_HJILO8LN26Y0TWRMR9HXDVNE6GBBH9.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/13/8_9TK9S5D7IZTAM1HCOB3FTKLWPIMZ2I.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/13/9_IXA9VQJD59BPZ3FZVWO5FWNZZ9NLSS.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/anjusrivastavaa46:13", "plots": "https://api.plotly.com/v2/plots/anjusrivastavaa46:13", "parent": "https://api.plotly.com/v2/folders/home?user=anjusrivastavaa46" }, "owner": "anjusrivastavaa46", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~anjusrivastavaa46/13/", "world_readable": true, "date_modified": "2023-07-06T07:40:23.603Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~anjusrivastavaa46/13/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Points:1", "y": "UPrime2Mean:0" } }, "mode": "lines", "name": "WALE", "type": "scatter", "xsrc": "anjusrivastavaa46:9:cf979a", "ysrc": "anjusrivastavaa46:9:40fde5" }, { "meta": { "columnNames": { "x": "Points:1", "y": "UPrime2Mean:0" } }, "mode": "lines", "name": "StaticSmag", "type": "scatter", "xsrc": "anjusrivastavaa46:9:cf979a", "ysrc": "anjusrivastavaa46:11:e4cf6d", "stackgroup": null }, { "meta": { "columnNames": { "x": "Points:1", "y": "UPrime2Mean:0" } }, "mode": "lines", "name": "Sigma", "type": "scatter", "xsrc": "anjusrivastavaa46:9:cf979a", "ysrc": "anjusrivastavaa46:10:3fb7bd", "stackgroup": null }, { "meta": { "columnNames": { "x": "Points:1", "y": "UPrime2Mean:0" } }, "mode": "lines", "name": "DynSmag", "type": "scatter", "xsrc": "anjusrivastavaa46:9:cf979a", "ysrc": "anjusrivastavaa46:12:f8ff5b", "stackgroup": null }, { "meta": { "columnNames": { "x": "x", "y": " y" } }, "mode": "markers", "name": "Umeanexp", "type": "scatter", "xsrc": "anjusrivastavaa46:8:833516", "ysrc": "anjusrivastavaa46:8:843a50" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 0.002285714285714286, 1.0057142857142858 ], "autorange": false }, "yaxis": { "type": "linear", "range": [ -6.3e-05, 0.001201011111111111 ], "autorange": false }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~anjusrivastavaa46", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/42.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-07-04 07:17:50", "mapbox_access_tokens": null, "has_password": null, "username": "anjusrivastavaa46", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T07:30:14.135827Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~pregmi/1.embed", "fid": "pregmi:1", "filename": "basic_line_chart", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/pregmi/1/9_TOUDX6JP7GCGPQ6QDJU0YQTR7KV0XP.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/pregmi/1/2_S3JO6DZEQFM8CT6HPF4PRJ1KJQ3RI7.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/pregmi/1/8_WCL11TNM4H7ZYOEUOMLM97F69U2KZO.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/pregmi/1/9_TOUDX6JP7GCGPQ6QDJU0YQTR7KV0XP.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/pregmi:1", "plots": "https://api.plotly.com/v2/plots/pregmi:1", "parent": "https://api.plotly.com/v2/folders/home?user=pregmi" }, "owner": "pregmi", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 5, "web_url": "https://chart-studio.plotly.com/~pregmi/1/", "world_readable": true, "date_modified": "2023-07-06T07:30:14.147Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~pregmi/1/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "type": "scatter", "xsrc": "pregmi:0:4f5482", "ysrc": "pregmi:0:a91a90" } ], "layout": { "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~pregmi", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-07-06 07:13:26", "mapbox_access_tokens": null, "has_password": null, "username": "pregmi", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T07:26:15.815797Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~SahapongNopcharoen/200.embed", "fid": "SahapongNopcharoen:200", "filename": "2023-07-06_Plot until 9.00", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/200/9_0FXKYXZ03VMYDECSWBCH41MXHPYOFG.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/200/2_I4VV5TKS1Z2DNV122DY90CZ5YLTZB4.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/200/8_R5BV3D6VEZ6YI9PW2J55Z0H89PC9I7.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/200/9_0FXKYXZ03VMYDECSWBCH41MXHPYOFG.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/SahapongNopcharoen:200", "plots": "https://api.plotly.com/v2/plots/SahapongNopcharoen:200", "parent": "https://api.plotly.com/v2/folders/home?user=SahapongNopcharoen" }, "owner": "SahapongNopcharoen", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~SahapongNopcharoen/200/", "world_readable": true, "date_modified": "2023-07-09T00:37:22.907Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~SahapongNopcharoen/200/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Time", "y": "PI002 (mbar)" } }, "mode": "lines", "name": "PI002", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:913285", "visible": true }, { "meta": { "columnNames": { "x": "Time", "y": "PI001(mbar)" } }, "mode": "lines", "name": "PI001", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:f5548e", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "PDI005 RTO Diff" } }, "mode": "lines", "name": "PDI-005", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:802c3c", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "QI001(%)" } }, "mode": "lines", "name": "QI001(%)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:1c4a5c", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "FI001(nm3/hr)" } }, "mode": "lines", "name": "FI001 (nm3/h)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:6172b7", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "PI003(mbar)" } }, "mode": "lines", "name": "PI003 (mbar)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:f75295", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "RTO Design Temp(C)" } }, "mode": "lines", "name": "RTO Design Temp(C)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:514f46", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "RTO Temp AVG.(C)" } }, "mode": "lines", "name": "RTO Temp avg (C)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:310b68", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "RTO Outlet Temp(C)" } }, "mode": "lines", "name": "RTO Outlet Temp (C)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:94efaa", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "% Oxygen After RTO" } }, "mode": "lines", "name": "% Oxygen after RTO", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:ae9d9d", "stackgroup": null }, { "meta": { "columnNames": { "x": "PI002 (mbar)", "y": "C01 Speed(%)" } }, "mode": "lines", "name": "C01 % Speed", "type": "scatter", "xsrc": "SahapongNopcharoen:193:913285", "ysrc": "SahapongNopcharoen:193:7b8236", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "C02 Speed(%)" } }, "mode": "lines", "name": "C02 % Speed", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:42e9d7", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "M03(%)" } }, "mode": "lines", "name": "% M03", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:df09e6", "visible": true, "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "M04(%)" } }, "mode": "lines", "name": "% M04", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:443961", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "M05(%)" } }, "mode": "lines", "name": "% M05", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:08f3a6", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "O2(%)" } }, "mode": "lines", "name": "%O2", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:1734fb", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "H2S(ppm)" } }, "mode": "lines", "name": "H2S (ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:bdcbd5", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "CO(ppm)" } }, "mode": "lines", "name": "CO (ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:d175e1", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "SOx(ppm)" } }, "mode": "lines", "name": "SOx(ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:27a817", "visible": true, "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "NOx(ppm)" } }, "mode": "lines", "name": "NOx(ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:1fb0f0", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "Acid Gas Flow Train 1(Nm3/h)" } }, "mode": "lines", "name": "Acid Gas Train 1(Nm3/h)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:5b46c3", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "Acid Gas Flow Train 2(Nm3/h)" } }, "mode": "lines", "name": "Acid Gas Train 2(Nm3/h)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:ae0656", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "%PV001" } }, "mode": "lines", "name": "%PV001", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:300f54", "visible": "legendonly", "stackgroup": null } ], "frames": [], "layout": { "xaxis": { "type": "category", "range": [ 0, 540 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -47.78211898944445, 924.6859009994445 ], "autorange": true }, "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "hovermode": "x", "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~SahapongNopcharoen", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/7.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2015-12-22 11:58:53", "mapbox_access_tokens": null, "has_password": null, "username": "SahapongNopcharoen", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T07:24:15.947993Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sirchartsalot/1.embed", "fid": "sirchartsalot:1", "filename": "File Compression", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/sirchartsalot/1/9_YE3B0LUDVV8L9CQ5JMU6F0KJQFVREF.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/sirchartsalot/1/2_ZINWMZ1M5GVUNGF4X79LSSN2RK8K1P.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/sirchartsalot/1/8_72IGNZGXM6Q9W68B65O3XUNJR85OH0.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/sirchartsalot/1/9_YE3B0LUDVV8L9CQ5JMU6F0KJQFVREF.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sirchartsalot:1", "plots": "https://api.plotly.com/v2/plots/sirchartsalot:1", "parent": "https://api.plotly.com/v2/folders/home?user=sirchartsalot" }, "owner": "sirchartsalot", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 7, "web_url": "https://chart-studio.plotly.com/~sirchartsalot/1/", "world_readable": true, "date_modified": "2023-07-06T07:24:15.958Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sirchartsalot/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B", "text": "C", "textposition": "D" } }, "mode": "markers+text", "type": "scatter", "xsrc": "sirchartsalot:0:9a357c", "ysrc": "sirchartsalot:0:31bc0c", "marker": { "line": { "color": "rgb(177, 177, 177)", "width": 2 }, "size": 8, "color": "rgb(245, 77, 77)", "symbol": "circle" }, "textsrc": "sirchartsalot:0:4c7456", "hoverinfo": "x+y+text", "cliponaxis": true, "orientation": "h", "textpositionsrc": "sirchartsalot:0:809cca" } ], "frames": [], "layout": { "font": { "color": "rgb(255, 255, 255)" }, "title": { "text": "Time vs Compression" }, "xaxis": { "type": "linear", "range": [ -0.5559311616472034, 63.5559311616472 ], "title": { "text": "Time (Minutes)" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 33.99955417832867, 48.27044582167133 ], "title": { "text": "% file size decrease" }, "autorange": true }, "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "plot_bgcolor": "rgb(0, 0, 0)", "paper_bgcolor": "rgb(0, 0, 0)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~sirchartsalot", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/50.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-07-06 07:23:42", "mapbox_access_tokens": null, "has_password": null, "username": "sirchartsalot", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T07:22:17.769923Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~anjusrivastavaa46/7.embed", "fid": "anjusrivastavaa46:7", "filename": "Plot 7", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/7/9_AFSHJLYQ6F71S5XJ0Q5NP3HST3HAXY.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/7/2_YPSIQP1D6O5ZAN8ZTIDRCROHA5CM36.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/7/8_6W0G46RS37J533YT1EE9HD4HEOJESP.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/anjusrivastavaa46/7/9_AFSHJLYQ6F71S5XJ0Q5NP3HST3HAXY.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/anjusrivastavaa46:7", "plots": "https://api.plotly.com/v2/plots/anjusrivastavaa46:7", "parent": "https://api.plotly.com/v2/folders/home?user=anjusrivastavaa46" }, "owner": "anjusrivastavaa46", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~anjusrivastavaa46/7/", "world_readable": true, "date_modified": "2023-07-06T07:41:46.474Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~anjusrivastavaa46/7/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Points:1", "y": "UMean:0" } }, "mode": "lines", "name": "WALE", "type": "scatter", "xsrc": "anjusrivastavaa46:3:987e3c", "ysrc": "anjusrivastavaa46:3:2de90c" }, { "meta": { "columnNames": { "x": "Points:1", "y": "UMean:0" } }, "mode": "lines", "name": "StaticSmag", "type": "scatter", "xsrc": "anjusrivastavaa46:3:987e3c", "ysrc": "anjusrivastavaa46:4:0fb543", "stackgroup": null }, { "meta": { "columnNames": { "x": "Points:1", "y": "UMean:0" } }, "mode": "lines", "name": "Sigma", "type": "scatter", "xsrc": "anjusrivastavaa46:3:987e3c", "ysrc": "anjusrivastavaa46:6:0e27ea", "stackgroup": null }, { "meta": { "columnNames": { "x": "Points:1", "y": "UMean:0" } }, "mode": "lines", "name": "DynSmag", "type": "scatter", "xsrc": "anjusrivastavaa46:3:987e3c", "ysrc": "anjusrivastavaa46:5:58cf16", "stackgroup": null }, { "meta": { "columnNames": { "x": "x", "y": " y" } }, "mode": "markers", "name": "Up2mexp", "type": "scatter", "xsrc": "anjusrivastavaa46:2:afbae5", "ysrc": "anjusrivastavaa46:2:40a535" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ -0.010480442745234339, 1.0020265754083897 ], "autorange": false }, "yaxis": { "type": "linear", "range": [ -0.01155853253310239, 0.17842969817727417 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~anjusrivastavaa46", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/42.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-07-04 07:17:50", "mapbox_access_tokens": null, "has_password": null, "username": "anjusrivastavaa46", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T07:12:35.966013Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Ardiram/49.embed", "fid": "Ardiram:49", "filename": "CASSCF Abweichung", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/Ardiram/49/9_DPWKXR791KR8JFOSTSL56IE74CYCV2.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/Ardiram/49/2_5GS62SS5DSPVOVPGT0HSX2QFBDOQU3.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/Ardiram/49/8_DKPN0MNNEOMDKIDDW8LXW9ZZBNB2PQ.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/Ardiram/49/9_DPWKXR791KR8JFOSTSL56IE74CYCV2.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Ardiram:49", "plots": "https://api.plotly.com/v2/plots/Ardiram:49", "parent": "https://api.plotly.com/v2/folders/home?user=Ardiram" }, "owner": "Ardiram", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 5, "web_url": "https://chart-studio.plotly.com/~Ardiram/49/", "world_readable": true, "date_modified": "2023-07-25T13:20:15.382Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Ardiram/49/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "G", "marker": { "color": "I" } } }, "mode": "markers", "name": "SS-NEVPT2 Energien", "type": "bar", "xsrc": "Ardiram:48:0d02ef", "ysrc": "Ardiram:48:589ee9", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 1 }, "meta": { "columnNames": { "color": "I" } }, "color": "rgb(0, 43, 255)", "opacity": 0.95 }, "orientation": "v" }, { "meta": { "columnNames": { "x": "A", "y": "H" } }, "name": "CCSDT-3 Energien", "type": "bar", "xsrc": "Ardiram:48:0d02ef", "ysrc": "Ardiram:48:cdef7a", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 1 }, "color": "rgb(255, 0, 0)" }, "orientation": "v" } ], "frames": [], "layout": { "font": { "size": 40, "color": "rgb(0, 0, 0)", "family": "Arial" }, "title": { "x": 0.5, "font": { "size": 60 }, "text": "SS-NEVPT2-Ergebnisse" }, "xaxis": { "side": "bottom", "type": "linear", "range": [ 0.5, 12.5 ], "title": { "font": { "size": 50 }, "text": "CT-Zustand" }, "mirror": "ticks", "nticks": 15, "showline": true, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickformat": "" }, "yaxis": { "side": "left", "type": "linear", "range": [ 0, 17 ], "title": { "text": "Anregungsenergien [eV]" }, "mirror": "ticks", "nticks": 20, "showline": true, "tickmode": "auto", "autorange": false, "linecolor": "rgb(0, 0, 0)", "automargin": true, "tickformat": "", "ticksuffix": "", "exponentformat": "none" }, "legend": { "x": 0.66, "y": 1 }, "barnorm": "", "autosize": true, "dragmode": "pan", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Ardiram", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/15.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-04-24 08:58:44", "mapbox_access_tokens": null, "has_password": null, "username": "Ardiram", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T06:57:25.254916Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~SahapongNopcharoen/199.embed", "fid": "SahapongNopcharoen:199", "filename": "2023-07-05_Plot", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/199/9_3QE9CRGDKZBWHSVVKA8RHY4VCGSA5O.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/199/2_S4BFEFFEW6SCDX8XHMLUGDP8DEGWTQ.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/199/8_9V8B914LC365BRIU460D0XTH7BB95L.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/SahapongNopcharoen/199/9_3QE9CRGDKZBWHSVVKA8RHY4VCGSA5O.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/SahapongNopcharoen:199", "plots": "https://api.plotly.com/v2/plots/SahapongNopcharoen:199", "parent": "https://api.plotly.com/v2/folders/home?user=SahapongNopcharoen" }, "owner": "SahapongNopcharoen", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~SahapongNopcharoen/199/", "world_readable": true, "date_modified": "2023-07-09T00:37:22.907Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~SahapongNopcharoen/199/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Time", "y": "PI002 (mbar)" } }, "mode": "lines", "name": "PI002", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:913285", "visible": true }, { "meta": { "columnNames": { "x": "Time", "y": "PI001(mbar)" } }, "mode": "lines", "name": "PI001", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:f5548e", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "PDI005 RTO Diff" } }, "mode": "lines", "name": "PDI-005", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:802c3c", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "QI001(%)" } }, "mode": "lines", "name": "QI001(%)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:1c4a5c", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "FI001(nm3/hr)" } }, "mode": "lines", "name": "FI001 (nm3/h)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:6172b7", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "PI003(mbar)" } }, "mode": "lines", "name": "PI003 (mbar)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:f75295", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "RTO Design Temp(C)" } }, "mode": "lines", "name": "RTO Design Temp(C)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:514f46", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "RTO Temp AVG.(C)" } }, "mode": "lines", "name": "RTO Temp avg (C)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:310b68", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "RTO Outlet Temp(C)" } }, "mode": "lines", "name": "RTO Outlet Temp (C)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:94efaa", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "% Oxygen After RTO" } }, "mode": "lines", "name": "% Oxygen after RTO", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:ae9d9d", "stackgroup": null }, { "meta": { "columnNames": { "x": "PI002 (mbar)", "y": "C01 Speed(%)" } }, "mode": "lines", "name": "C01 % Speed", "type": "scatter", "xsrc": "SahapongNopcharoen:193:913285", "ysrc": "SahapongNopcharoen:193:7b8236", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "C02 Speed(%)" } }, "mode": "lines", "name": "C02 % Speed", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:42e9d7", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "M03(%)" } }, "mode": "lines", "name": "% M03", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:df09e6", "visible": true, "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "M04(%)" } }, "mode": "lines", "name": "% M04", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:443961", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "M05(%)" } }, "mode": "lines", "name": "% M05", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:08f3a6", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "O2(%)" } }, "mode": "lines", "name": "%O2", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:1734fb", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "H2S(ppm)" } }, "mode": "lines", "name": "H2S (ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:bdcbd5", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "CO(ppm)" } }, "mode": "lines", "name": "CO (ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:d175e1", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "SOx(ppm)" } }, "mode": "lines", "name": "SOx(ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:27a817", "visible": true, "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "NOx(ppm)" } }, "mode": "lines", "name": "NOx(ppm)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:1fb0f0", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "Acid Gas Flow Train 1(Nm3/h)" } }, "mode": "lines", "name": "Acid Gas Train 1(Nm3/h)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:5b46c3", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "Acid Gas Flow Train 2(Nm3/h)" } }, "mode": "lines", "name": "Acid Gas Train 2(Nm3/h)", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:ae0656", "visible": "legendonly", "stackgroup": null }, { "meta": { "columnNames": { "x": "Time", "y": "%PV001" } }, "mode": "lines", "name": "%PV001", "type": "scatter", "xsrc": "SahapongNopcharoen:193:3321e0", "ysrc": "SahapongNopcharoen:193:300f54", "visible": "legendonly", "stackgroup": null } ], "frames": [], "layout": { "xaxis": { "type": "category", "range": [ 0, 899 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -48.4029335845, 937.2843649255 ], "autorange": true }, "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "hovermode": "x", "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~SahapongNopcharoen", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/7.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2015-12-22 11:58:53", "mapbox_access_tokens": null, "has_password": null, "username": "SahapongNopcharoen", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T06:37:32.330372Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sunjulee/111.embed", "fid": "sunjulee:111", "filename": "오존생성기여율 %_김포(2022연보)", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/sunjulee/111/9_1P7ULKNNRX1TRCVJ3VSKDBQX175DSM.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/sunjulee/111/2_2876JEV7P06X1EN6ULARF5LDRE2OX8.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/sunjulee/111/8_HGSTR2PAHJD6O8ERGT8LZ7LJ0D88HB.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/sunjulee/111/9_1P7ULKNNRX1TRCVJ3VSKDBQX175DSM.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sunjulee:111", "plots": "https://api.plotly.com/v2/plots/sunjulee:111", "parent": "https://api.plotly.com/v2/folders/home?user=sunjulee" }, "owner": "sunjulee", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~sunjulee/111/", "world_readable": true, "date_modified": "2023-07-06T06:37:32.341Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sunjulee/111/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "hole": 0.28, "meta": { "columnNames": { "text": "text", "labels": "labels", "values": "values", "textposition": "A" } }, "mode": "markers", "pull": 0, "sort": false, "type": "pie", "title": { "font": { "size": 40 }, "text": "<b>김포</b>" }, "domain": { "x": [ 0, 1 ], "y": [ 0, 0.85 ] }, "marker": { "line": { "color": "rgb(242, 237, 237)", "width": 2 }, "colors": [] }, "opacity": 1, "textsrc": "sunjulee:110:75498f", "textfont": { "size": 20, "color": "rgb(12, 12, 12)", "family": "Arial" }, "textinfo": "percent", "direction": "clockwise", "hoverinfo": "percent+label+value+text", "labelssrc": "sunjulee:110:bb7bb3", "valuessrc": "sunjulee:110:afbaaa", "hoverlabel": { "align": "auto", "namelength": 15 }, "scalegroup": "", "orientation": "v", "textposition": "middle center", "texttemplate": "", "hovertemplate": "", "autocolorscale": true, "insidetextorientation": "auto" } ], "frames": [], "layout": { "font": { "size": 26, "color": "rgb(20, 20, 20)" }, "title": { "x": 0.5, "font": { "size": 25 }, "text": "<br>" }, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "legend": { "x": 0.71, "y": 0.9470270270270269, "font": { "size": 30, "color": "rgb(23, 23, 23)", "family": "Arial" }, "valign": "middle", "bgcolor": "rgb(255, 255, 255)", "xanchor": "left", "itemsizing": "trace", "traceorder": "normal", "borderwidth": 0, "orientation": "v" }, "modebar": { "orientation": "h" }, "autosize": true, "colorway": [ "#e41a1c", "#377eb8", "#4daf4a", "#984ea3", "#ff7f00", "#ffff33", "#a65628", "#f781bf", "#999999" ], "clickmode": "event+select", "hovermode": "x", "hoverlabel": { "font": { "size": 29 }, "align": "right" }, "separators": ".,", "showlegend": true, "piecolorway": [ "#8dd3c7", "#ffffb3", "#bebada", "#fb8072", "#80b1d3", "#fdb462", "#b3de69", "#fccde5", "#d9d9d9", "#bc80bd", "#ccebc5", "#ffed6f" ], "uniformtext": { "mode": false, "minsize": 5 }, "hiddenlabels": [], "extendpiecolors": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~sunjulee", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/97.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-06-27 01:03:21", "mapbox_access_tokens": null, "has_password": null, "username": "sunjulee", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2023-07-06T06:21:28.851888Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sunjulee/109.embed", "fid": "sunjulee:109", "filename": "오존생성기여율 %_평택(2023연보)", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/sunjulee/109/9_QWT50NDANRKN1FF6XOHZ5RZO7D9WN1.png", "image_urls": { "default": "https://api.plotly.com/v2/files/sunjulee:109/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/sunjulee/109/8_XT6Q037AB7RDJFWA32CDU5D5Z52ZZZ.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/sunjulee/109/9_QWT50NDANRKN1FF6XOHZ5RZO7D9WN1.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sunjulee:109", "plots": "https://api.plotly.com/v2/plots/sunjulee:109", "parent": "https://api.plotly.com/v2/folders/home?user=sunjulee" }, "owner": "sunjulee", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~sunjulee/109/", "world_readable": true, "date_modified": "2024-05-22T06:39:59.826Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sunjulee/109/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "hole": 0.28, "meta": { "columnNames": { "text": "text", "labels": "labels", "values": "values", "textposition": "A" } }, "mode": "markers", "sort": false, "type": "pie", "title": { "font": { "size": 40 }, "text": "<b>평택</b>" }, "domain": { "x": [ 0, 1 ], "y": [ 0, 0.85 ] }, "marker": { "line": { "color": "rgb(242, 237, 237)", "width": 2 }, "colors": [] }, "opacity": 1, "textsrc": "sunjulee:108:ff4d4c", "textfont": { "size": 20, "color": "rgb(12, 12, 12)", "family": "Arial" }, "textinfo": "percent", "direction": "clockwise", "hoverinfo": "value+text", "labelssrc": "sunjulee:108:f58f30", "valuessrc": "sunjulee:108:08b7a1", "hoverlabel": { "align": "auto", "namelength": 15 }, "scalegroup": "", "orientation": "v", "textposition": "middle center", "texttemplate": "", "hovertemplate": "", "autocolorscale": true, "insidetextorientation": "auto" } ], "frames": [], "layout": { "font": { "size": 26, "color": "rgb(20, 20, 20)" }, "title": { "x": 0.5, "font": { "size": 25 }, "text": "<br>" }, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "legend": { "x": 0.71, "y": 0.9470270270270269, "font": { "size": 30, "color": "rgb(23, 23, 23)", "family": "Arial" }, "valign": "middle", "bgcolor": "rgb(255, 255, 255)", "xanchor": "left", "itemsizing": "constant", "traceorder": "normal", "borderwidth": 0, "orientation": "v" }, "modebar": { "orientation": "h" }, "autosize": true, "colorway": [ "#e41a1c", "#377eb8", "#4daf4a", "#984ea3", "#ff7f00", "#ffff33", "#a65628", "#f781bf", "#999999" ], "clickmode": "event+select", "hovermode": "x", "hoverlabel": { "font": { "size": 29 }, "align": "right" }, "separators": ".,", "showlegend": true, "piecolorway": [ "#8dd3c7", "#ffffb3", "#bebada", "#fb8072", "#80b1d3", "#fdb462", "#b3de69", "#fccde5", "#d9d9d9", "#bc80bd", "#ccebc5", "#ffed6f" ], "uniformtext": { "mode": false, "minsize": 5 }, "hiddenlabels": [], "extendpiecolors": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~sunjulee", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/97.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-06-27 01:03:21", "mapbox_access_tokens": null, "has_password": null, "username": "sunjulee", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
