Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cj0xJnA9MjAyNC0wNC0xOSsxMSUzQTE0JTNBMjguNzgxMjEyJTJCMDAlM0EwMA%3D%3D&format=api

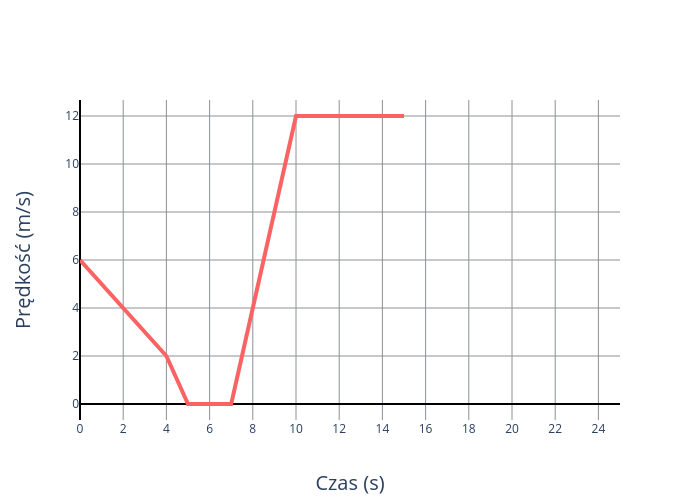

{ "next": "https://api.plotly.com/v2/plots?cursor=cD0yMDI0LTA0LTE5KzExJTNBMTQlM0EzNC4wNjM0MjIlMkIwMCUzQTAw&format=api", "previous": "https://api.plotly.com/v2/plots?cursor=cj0xJnA9MjAyNC0wNC0xOSsxMSUzQTE2JTNBMTIuNTc2MDA2JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2024-04-19T11:16:12.576006Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~adam.kwiatkowski.fizyk/3.embed", "fid": "adam.kwiatkowski.fizyk:3", "filename": "plot2", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/adam.kwiatkowski.fizyk/3/9_3MM1N0YNLGA5FUYR1HKUX8KWQRFCAY.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/adam.kwiatkowski.fizyk/3/2_7YK2WWUEO6SATPJSDSV70WE0KHX1AN.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/adam.kwiatkowski.fizyk/3/8_N1OELRGE51HFBQ2CSAW39PET3Z1I5U.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/adam.kwiatkowski.fizyk/3/9_3MM1N0YNLGA5FUYR1HKUX8KWQRFCAY.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/adam.kwiatkowski.fizyk:3", "plots": "https://api.plotly.com/v2/plots/adam.kwiatkowski.fizyk:3", "parent": "https://api.plotly.com/v2/folders/home?user=adam.kwiatkowski.fizyk" }, "owner": "adam.kwiatkowski.fizyk", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~adam.kwiatkowski.fizyk/3/", "world_readable": true, "date_modified": "2024-04-19T11:16:12.586Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~adam.kwiatkowski.fizyk/3/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(250, 99, 99)", "width": 4 }, "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "lines", "type": "scatter", "xsrc": "adam.kwiatkowski.fizyk:2:c8cd7b", "ysrc": "adam.kwiatkowski.fizyk:2:2d7965" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 0, 25 ], "title": { "font": { "size": 20 }, "text": "Czas (s)" }, "nticks": 18, "autorange": false, "gridcolor": "rgb(140, 144, 152)", "zerolinecolor": "rgb(0, 0, 0)", "zerolinewidth": 2 }, "yaxis": { "type": "linear", "range": [ -0.6666666666666667, 12.666666666666666 ], "title": { "font": { "size": 20 }, "text": "Prędkość (m/s)" }, "autorange": true, "gridcolor": "rgb(140, 144, 152)", "zerolinecolor": "rgb(1, 1, 1)" }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~adam.kwiatkowski.fizyk", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-04-18 13:22:06", "mapbox_access_tokens": null, "has_password": null, "username": "adam.kwiatkowski.fizyk", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:16:03.954754Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~peter.capcara/195.embed", "fid": "peter.capcara:195", "filename": "Plot 195", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/peter.capcara/195/9_ZSKYP5QLM1H4JJ0V6LTSN1OGKM4IDF.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/peter.capcara/195/2_PVF879OM7AJHBCBAKM0KMLVPEKIYOU.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/peter.capcara/195/8_XKAMVX9QNLPH6OZHM43POAZB19JTDH.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/peter.capcara/195/9_ZSKYP5QLM1H4JJ0V6LTSN1OGKM4IDF.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/peter.capcara:195", "plots": "https://api.plotly.com/v2/plots/peter.capcara:195", "parent": "https://api.plotly.com/v2/folders/home?user=peter.capcara" }, "owner": "peter.capcara", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~peter.capcara/195/", "world_readable": true, "date_modified": "2024-04-19T11:16:03.967Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~peter.capcara/195/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "a1a8b8", "asrc": "peter.capcara:194:f53a8f", "bsrc": "peter.capcara:194:5254b7", "csrc": "peter.capcara:194:4eacbe", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "PD", "text": "PD", "type": "scatterternary", "subplot": "ternary", "fillcolor": "#8dd3c7" }, { "uid": "c72344", "asrc": "peter.capcara:194:69bc6d", "bsrc": "peter.capcara:194:f550ff", "csrc": "peter.capcara:194:9af3f7", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "D1", "text": "D1", "type": "scatterternary", "subplot": "ternary", "fillcolor": "#ffffb3" }, { "uid": "3eab74", "asrc": "peter.capcara:194:9366c9", "bsrc": "peter.capcara:194:6fd54c", "csrc": "peter.capcara:194:4ce959", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "D2", "text": "D2", "type": "scatterternary", "subplot": "ternary", "fillcolor": "#bebada" }, { "uid": "b9dc9f", "asrc": "peter.capcara:194:386d8d", "bsrc": "peter.capcara:194:abbd80", "csrc": "peter.capcara:194:4d4948", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "DT", "text": "DT", "type": "scatterternary", "subplot": "ternary", "fillcolor": "#fb8072" }, { "uid": "381ad2", "asrc": "peter.capcara:194:a95659", "bsrc": "peter.capcara:194:cf3b2a", "csrc": "peter.capcara:194:eab513", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "T1", "text": "T1", "type": "scatterternary", "subplot": "ternary", "fillcolor": "#80b1d3" }, { "uid": "8cc163", "asrc": "peter.capcara:194:e1072c", "bsrc": "peter.capcara:194:683c10", "csrc": "peter.capcara:194:21e205", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "T2", "text": "T2", "type": "scatterternary", "subplot": "ternary", "fillcolor": "#fdb462" }, { "uid": "6f33dc", "asrc": "peter.capcara:194:58ac3e", "bsrc": "peter.capcara:194:7dc771", "csrc": "peter.capcara:194:c6b673", "fill": "toself", "line": { "color": "#444" }, "mode": "lines", "name": "T3", "text": "T3", "type": "scatterternary", "opacity": 0.5, "subplot": "ternary", "fillcolor": "#b3de69" }, { "asrc": "peter.capcara:194:dd5209", "bsrc": "peter.capcara:194:102483", "csrc": "peter.capcara:194:5e17bb", "mode": "markers", "name": "3270", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:223453", "bsrc": "peter.capcara:194:c531ea", "csrc": "peter.capcara:194:926699", "mode": "markers", "name": "650", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:f82e30", "bsrc": "peter.capcara:194:2b49a0", "csrc": "peter.capcara:194:1d63a8", "mode": "markers", "name": "649", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:5c4ae8", "bsrc": "peter.capcara:194:7258e4", "csrc": "peter.capcara:194:3a0b58", "mode": "markers", "name": "648", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:1f40f2", "bsrc": "peter.capcara:194:8efef1", "csrc": "peter.capcara:194:57eca6", "mode": "markers", "name": "647", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:9787c1", "bsrc": "peter.capcara:194:bd6a43", "csrc": "peter.capcara:194:41ff49", "mode": "markers", "name": "646", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:f8c603", "bsrc": "peter.capcara:194:4647a1", "csrc": "peter.capcara:194:b4712d", "mode": "markers", "name": "645", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:2c76d0", "bsrc": "peter.capcara:194:e3d0c0", "csrc": "peter.capcara:194:a10020", "mode": "markers", "name": "644", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:30463c", "bsrc": "peter.capcara:194:2c7c79", "csrc": "peter.capcara:194:fd4946", "mode": "markers", "name": "643", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:e1678b", "bsrc": "peter.capcara:194:3d29e0", "csrc": "peter.capcara:194:d7f965", "mode": "markers", "name": "642", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:a02eaa", "bsrc": "peter.capcara:194:f4ff37", "csrc": "peter.capcara:194:08b2dc", "mode": "markers", "name": "641", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:0f5723", "bsrc": "peter.capcara:194:2b3a70", "csrc": "peter.capcara:194:c04093", "mode": "markers", "name": "640", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:61763a", "bsrc": "peter.capcara:194:1410f8", "csrc": "peter.capcara:194:bde26e", "mode": "markers", "name": "639", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:01c121", "bsrc": "peter.capcara:194:5f4be2", "csrc": "peter.capcara:194:7f88e2", "mode": "markers", "name": "638", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:6904f5", "bsrc": "peter.capcara:194:2b19d6", "csrc": "peter.capcara:194:211c04", "mode": "markers", "name": "637", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:02dbb4", "bsrc": "peter.capcara:194:3ceeb6", "csrc": "peter.capcara:194:4fb3cb", "mode": "markers", "name": "636", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:bd46f1", "bsrc": "peter.capcara:194:730762", "csrc": "peter.capcara:194:48cbe9", "mode": "markers", "name": "635", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:961030", "bsrc": "peter.capcara:194:3bdc9e", "csrc": "peter.capcara:194:5365df", "mode": "markers", "name": "634", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:bbca35", "bsrc": "peter.capcara:194:c88a71", "csrc": "peter.capcara:194:9eca12", "mode": "markers", "name": "633", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:45bb86", "bsrc": "peter.capcara:194:1d596d", "csrc": "peter.capcara:194:22bba9", "mode": "markers", "name": "632", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:675dae", "bsrc": "peter.capcara:194:ffd13c", "csrc": "peter.capcara:194:d6cbc7", "mode": "markers", "name": "631", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:b81414", "bsrc": "peter.capcara:194:3443fc", "csrc": "peter.capcara:194:ba4efa", "mode": "markers", "name": "630", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:43f7b4", "bsrc": "peter.capcara:194:91667c", "csrc": "peter.capcara:194:5e1390", "mode": "markers", "name": "629", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:ee3fae", "bsrc": "peter.capcara:194:c416aa", "csrc": "peter.capcara:194:95ab0f", "mode": "markers", "name": "628", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:2fff3a", "bsrc": "peter.capcara:194:2442bf", "csrc": "peter.capcara:194:2683cb", "mode": "markers", "name": "627", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:48d7ad", "bsrc": "peter.capcara:194:76b8b8", "csrc": "peter.capcara:194:881729", "mode": "markers", "name": "626", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:15d3bb", "bsrc": "peter.capcara:194:128158", "csrc": "peter.capcara:194:82755b", "mode": "markers", "name": "625", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:867065", "bsrc": "peter.capcara:194:0e5692", "csrc": "peter.capcara:194:c59f5d", "mode": "markers", "name": "624", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:b61476", "bsrc": "peter.capcara:194:ac8d3c", "csrc": "peter.capcara:194:d465a8", "mode": "markers", "name": "623", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:92dc4d", "bsrc": "peter.capcara:194:5b0b45", "csrc": "peter.capcara:194:99804b", "mode": "markers", "name": "622", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:c5a962", "bsrc": "peter.capcara:194:7e8c7a", "csrc": "peter.capcara:194:17a8d4", "mode": "markers", "name": "621", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:5bdab1", "bsrc": "peter.capcara:194:e19512", "csrc": "peter.capcara:194:aef3bb", "mode": "markers", "name": "620", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:332ea9", "bsrc": "peter.capcara:194:3f9ca1", "csrc": "peter.capcara:194:6a695a", "mode": "markers", "name": "619", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:c4901f", "bsrc": "peter.capcara:194:3c9195", "csrc": "peter.capcara:194:7a1d0c", "mode": "markers", "name": "618", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:32ee8c", "bsrc": "peter.capcara:194:5e43b2", "csrc": "peter.capcara:194:a3f355", "mode": "markers", "name": "617", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:45f83c", "bsrc": "peter.capcara:194:ef4845", "csrc": "peter.capcara:194:de9685", "mode": "markers", "name": "616", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:46590d", "bsrc": "peter.capcara:194:146786", "csrc": "peter.capcara:194:396965", "mode": "markers", "name": "615", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:a0686c", "bsrc": "peter.capcara:194:2c2682", "csrc": "peter.capcara:194:e5ff46", "mode": "markers", "name": "614", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:7fdc43", "bsrc": "peter.capcara:194:52761a", "csrc": "peter.capcara:194:6d90d4", "mode": "markers", "name": "613", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:3348eb", "bsrc": "peter.capcara:194:2167da", "csrc": "peter.capcara:194:adca78", "mode": "markers", "name": "612", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:b9eeee", "bsrc": "peter.capcara:194:0de0b6", "csrc": "peter.capcara:194:ada28d", "mode": "markers", "name": "611", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:6f0468", "bsrc": "peter.capcara:194:d06f48", "csrc": "peter.capcara:194:2f4efb", "mode": "markers", "name": "610", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:3598a5", "bsrc": "peter.capcara:194:71194d", "csrc": "peter.capcara:194:339e6a", "mode": "markers", "name": "609", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:c5e5f9", "bsrc": "peter.capcara:194:9ba44f", "csrc": "peter.capcara:194:07f2e4", "mode": "markers", "name": "608", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:ae5c6c", "bsrc": "peter.capcara:194:7032da", "csrc": "peter.capcara:194:0a967a", "mode": "markers", "name": "607", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:ba9d3c", "bsrc": "peter.capcara:194:a84db6", "csrc": "peter.capcara:194:ecdce9", "mode": "markers", "name": "606", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:95ca01", "bsrc": "peter.capcara:194:a52167", "csrc": "peter.capcara:194:b756d6", "mode": "markers", "name": "605", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:ad7aa4", "bsrc": "peter.capcara:194:1b966b", "csrc": "peter.capcara:194:5ea322", "mode": "markers", "name": "604", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:9d011b", "bsrc": "peter.capcara:194:7832d6", "csrc": "peter.capcara:194:082ec6", "mode": "markers", "name": "603", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:475474", "bsrc": "peter.capcara:194:1b3f23", "csrc": "peter.capcara:194:d4db95", "mode": "markers", "name": "602", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:8e25f9", "bsrc": "peter.capcara:194:948827", "csrc": "peter.capcara:194:1a6a23", "mode": "markers", "name": "601", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:0b9904", "bsrc": "peter.capcara:194:5178b4", "csrc": "peter.capcara:194:9d6d89", "mode": "markers", "name": "600", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:d6493b", "bsrc": "peter.capcara:194:af8821", "csrc": "peter.capcara:194:44c2f3", "mode": "markers", "name": "599", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:59dc73", "bsrc": "peter.capcara:194:d3ee0d", "csrc": "peter.capcara:194:1c752a", "mode": "markers", "name": "598", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:f7e5fe", "bsrc": "peter.capcara:194:23f414", "csrc": "peter.capcara:194:b94b25", "mode": "markers", "name": "597", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:622b0b", "bsrc": "peter.capcara:194:3e2112", "csrc": "peter.capcara:194:971077", "mode": "markers", "name": "596", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:e7e3a9", "bsrc": "peter.capcara:194:212ca2", "csrc": "peter.capcara:194:6cc7a6", "mode": "markers", "name": "595", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:4439ee", "bsrc": "peter.capcara:194:2cebdb", "csrc": "peter.capcara:194:7aef23", "mode": "markers", "name": "594", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:333260", "bsrc": "peter.capcara:194:e8ed89", "csrc": "peter.capcara:194:66c62c", "mode": "markers", "name": "593", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:ae6088", "bsrc": "peter.capcara:194:7e9c37", "csrc": "peter.capcara:194:11064b", "mode": "markers", "name": "592", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:93cd7c", "bsrc": "peter.capcara:194:7f02aa", "csrc": "peter.capcara:194:497444", "mode": "markers", "name": "591", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:416c35", "bsrc": "peter.capcara:194:93e14e", "csrc": "peter.capcara:194:8253d7", "mode": "markers", "name": "589", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:e39373", "bsrc": "peter.capcara:194:70ee08", "csrc": "peter.capcara:194:fd38f1", "mode": "markers", "name": "588", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:80e483", "bsrc": "peter.capcara:194:cf265a", "csrc": "peter.capcara:194:308cc5", "mode": "markers", "name": "587", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:2c3df5", "bsrc": "peter.capcara:194:119e99", "csrc": "peter.capcara:194:1e4d8c", "mode": "markers", "name": "586", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:fb3aa0", "bsrc": "peter.capcara:194:35fcbe", "csrc": "peter.capcara:194:fc40e4", "mode": "markers", "name": "585", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:099ec8", "bsrc": "peter.capcara:194:446de2", "csrc": "peter.capcara:194:cd7a57", "mode": "markers", "name": "584", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:818b26", "bsrc": "peter.capcara:194:80541b", "csrc": "peter.capcara:194:9036a9", "mode": "markers", "name": "583", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:a0fbaf", "bsrc": "peter.capcara:194:c2bce9", "csrc": "peter.capcara:194:9a0cf1", "mode": "markers", "name": "582", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:0be36b", "bsrc": "peter.capcara:194:09dbd5", "csrc": "peter.capcara:194:0ccd0e", "mode": "markers", "name": "581", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:1f538a", "bsrc": "peter.capcara:194:c075b5", "csrc": "peter.capcara:194:b0d8e4", "mode": "markers", "name": "580", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:529721", "bsrc": "peter.capcara:194:99e932", "csrc": "peter.capcara:194:3cd0bd", "mode": "markers", "name": "579", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "asrc": "peter.capcara:194:6aae56", "bsrc": "peter.capcara:194:9c2815", "csrc": "peter.capcara:194:43a5bc", "mode": "markers", "name": "577", "type": "scatterternary", "marker": { "size": 10, "color": "rgb(255,0,0)", "symbol": "star" }, "subplot": "ternary" }, { "type": "table", "cells": { "fill": { "color": "lavender" }, "align": "left", "valuessrc": "peter.capcara:194:04232c" }, "domain": { "x": [ 0.0, 1.0 ], "y": [ 0.0, 0.255 ] }, "header": { "fill": { "color": "paleturquoise" }, "align": "left", "valuessrc": "peter.capcara:194:3a977c" }, "columnwidthsrc": "peter.capcara:194:6ce6a9" } ], "layout": { "title": { "text": "Duval Triangle for DGA Interpretation" }, "height": 1000, "ternary": { "sum": 100, "aaxis": { "min": 0.01, "ticks": "outside", "title": { "text": "CH4(Methane)" }, "linewidth": 2, "ticksuffix": "%" }, "baxis": { "min": 0.01, "ticks": "outside", "title": { "text": "C2H2(Acetylene)" }, "linewidth": 2, "ticksuffix": "%" }, "caxis": { "min": 0.01, "ticks": "outside", "title": { "text": "C2H4(Ethylene)" }, "linewidth": 2, "ticksuffix": "%" }, "domain": { "x": [ 0.0, 1.0 ], "y": [ 0.405, 1.0 ] } }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "showlegend": true } }, "height": 1000, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~peter.capcara", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/41.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-04-08 08:11:51", "mapbox_access_tokens": null, "has_password": null, "username": "peter.capcara", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:15:13.807777Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/190.embed", "fid": "getcharish:190", "filename": "dummyPhysicalRisksforAviation sector risks", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/190/9_TQC2CGR6PQ620HT2VVAT2F9M1Y48LS.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/190/2_SWJI86QGZ8TFIKKS99FO20AY1PG3SM.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/190/8_O3HJUISLLPCKSJZQB3GAFRDYTITF16.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/190/9_TQC2CGR6PQ620HT2VVAT2F9M1Y48LS.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:190", "plots": "https://api.plotly.com/v2/plots/getcharish:190", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~getcharish/190/", "world_readable": true, "date_modified": "2024-04-22T14:56:48.156Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/190/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Short-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:bccabe", "ysrc": "getcharish:460:b6d26c", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:685b0e", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:6c1b2a", "sizemode": "area" }, "showlegend": true, "legendgroup": "Short-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:ef9fbb", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Short-term disruptions in aviation<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Medium-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:db38d6", "ysrc": "getcharish:460:1ad837", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:1cdc79", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:3b7bb9", "sizemode": "area" }, "showlegend": true, "legendgroup": "Medium-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:d34bf0", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Medium-term disruptions in aviation<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Long-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:5c87b9", "ysrc": "getcharish:460:38d8a4", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:2b5687", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:063d9b", "sizemode": "area" }, "showlegend": true, "legendgroup": "Long-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:bc7834", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Long-term disruptions in aviation<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Short-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:57d0e1", "ysrc": "getcharish:460:2878fb", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:421786", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:8132ff", "sizemode": "area" }, "showlegend": true, "legendgroup": "Short-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:ab531d", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Short-term disruptions in aviation<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Medium-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:a34af5", "ysrc": "getcharish:460:f152ad", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:c28fae", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:4dc3ab", "sizemode": "area" }, "showlegend": true, "legendgroup": "Medium-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:7b8b86", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Medium-term disruptions in aviation<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Long-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:304660", "ysrc": "getcharish:460:581624", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:97f576", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:906575", "sizemode": "area" }, "showlegend": true, "legendgroup": "Long-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:52f930", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Long-term disruptions in aviation<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Short-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:ee43be", "ysrc": "getcharish:460:d7243b", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:6b2acb", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:26e364", "sizemode": "area" }, "showlegend": true, "legendgroup": "Short-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:797103", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Short-term disruptions in aviation<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Medium-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:136301", "ysrc": "getcharish:460:258c70", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:f7cf4f", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:00a995", "sizemode": "area" }, "showlegend": true, "legendgroup": "Medium-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:b59195", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Medium-term disruptions in aviation<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Long-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:5fd60e", "ysrc": "getcharish:460:5e246c", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:2e216a", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:e23087", "sizemode": "area" }, "showlegend": true, "legendgroup": "Long-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:16ba75", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Long-term disruptions in aviation<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Short-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:d3ee4c", "ysrc": "getcharish:460:79c22a", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:cd5aad", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:53c083", "sizemode": "area" }, "showlegend": true, "legendgroup": "Short-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:691ede", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Short-term disruptions in aviation<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Medium-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:916de3", "ysrc": "getcharish:460:3c2f2f", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:dbcca5", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:969877", "sizemode": "area" }, "showlegend": true, "legendgroup": "Medium-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:1bf4ec", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Medium-term disruptions in aviation<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Long-term disruptions in aviation", "type": "scatter", "xsrc": "getcharish:460:7bf7dc", "ysrc": "getcharish:460:2298d1", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:460:468ed6", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.013888888888888888, "sizesrc": "getcharish:460:540a98", "sizemode": "area" }, "showlegend": true, "legendgroup": "Long-term disruptions in aviation", "orientation": "v", "hovertextsrc": "getcharish:460:466e16", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Long-term disruptions in aviation<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Aviation sector risks" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:15:08.374729Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/188.embed", "fid": "getcharish:188", "filename": "dummyPhysicalRisksforInterdependency risk", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/188/9_P1E9W6YH2CFPVD0O9JBRQCJ0I4NN9S.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/188/2_TWNUSZVI4A1Z00MIGEYDJLOFT78GYL.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/188/8_8GXLICM6PHE2BNVEDL55OYNO30BCQG.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/188/9_P1E9W6YH2CFPVD0O9JBRQCJ0I4NN9S.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:188", "plots": "https://api.plotly.com/v2/plots/getcharish:188", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~getcharish/188/", "world_readable": true, "date_modified": "2024-04-22T14:56:39.374Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/188/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Electrical/power disruption", "type": "scatter", "xsrc": "getcharish:459:38f1e6", "ysrc": "getcharish:459:8f7f13", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:422488", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:f64888", "sizemode": "area" }, "showlegend": true, "legendgroup": "Electrical/power disruption", "orientation": "v", "hovertextsrc": "getcharish:459:43fbca", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Electrical/power disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Water supply disruption", "type": "scatter", "xsrc": "getcharish:459:8b3c0b", "ysrc": "getcharish:459:92aefe", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:bd65ad", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:510dc1", "sizemode": "area" }, "showlegend": true, "legendgroup": "Water supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:6582b6", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Water supply disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Waste supply disruption", "type": "scatter", "xsrc": "getcharish:459:d33f80", "ysrc": "getcharish:459:0240a9", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:66529f", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:c457a2", "sizemode": "area" }, "showlegend": true, "legendgroup": "Waste supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:992331", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Waste supply disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Concession/delivery disruption", "type": "scatter", "xsrc": "getcharish:459:56467e", "ysrc": "getcharish:459:0888ee", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:b80a1e", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:178d03", "sizemode": "area" }, "showlegend": true, "legendgroup": "Concession/delivery disruption", "orientation": "v", "hovertextsrc": "getcharish:459:392c6d", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Concession/delivery disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Electrical/power disruption", "type": "scatter", "xsrc": "getcharish:459:32145c", "ysrc": "getcharish:459:eabab1", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:556525", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:3a6dac", "sizemode": "area" }, "showlegend": true, "legendgroup": "Electrical/power disruption", "orientation": "v", "hovertextsrc": "getcharish:459:0fa0f9", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Electrical/power disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Water supply disruption", "type": "scatter", "xsrc": "getcharish:459:7f56cb", "ysrc": "getcharish:459:1e119d", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:7c3294", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:da7f63", "sizemode": "area" }, "showlegend": true, "legendgroup": "Water supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:94e589", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Water supply disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Waste supply disruption", "type": "scatter", "xsrc": "getcharish:459:851841", "ysrc": "getcharish:459:23fa02", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:456325", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:d80eff", "sizemode": "area" }, "showlegend": true, "legendgroup": "Waste supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:d5d34a", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Waste supply disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Concession/delivery disruption", "type": "scatter", "xsrc": "getcharish:459:991454", "ysrc": "getcharish:459:780c25", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:0a98f3", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:a98813", "sizemode": "area" }, "showlegend": true, "legendgroup": "Concession/delivery disruption", "orientation": "v", "hovertextsrc": "getcharish:459:db162b", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Concession/delivery disruption<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Electrical/power disruption", "type": "scatter", "xsrc": "getcharish:459:58c856", "ysrc": "getcharish:459:b10d04", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:63ca1b", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:5e56fb", "sizemode": "area" }, "showlegend": true, "legendgroup": "Electrical/power disruption", "orientation": "v", "hovertextsrc": "getcharish:459:4f8464", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Electrical/power disruption<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Water supply disruption", "type": "scatter", "xsrc": "getcharish:459:f3bb59", "ysrc": "getcharish:459:2d2b20", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:4c0784", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:f037a9", "sizemode": "area" }, "showlegend": true, "legendgroup": "Water supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:66c879", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Water supply disruption<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Waste supply disruption", "type": "scatter", "xsrc": "getcharish:459:364fd8", "ysrc": "getcharish:459:63a761", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:4dda7a", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:31e1bf", "sizemode": "area" }, "showlegend": true, "legendgroup": "Waste supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:05ef6d", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Waste supply disruption<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Concession/delivery disruption", "type": "scatter", "xsrc": "getcharish:459:971b09", "ysrc": "getcharish:459:40959b", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:0e524d", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:bb5e4a", "sizemode": "area" }, "showlegend": true, "legendgroup": "Concession/delivery disruption", "orientation": "v", "hovertextsrc": "getcharish:459:d92e2c", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Concession/delivery disruption<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Electrical/power disruption", "type": "scatter", "xsrc": "getcharish:459:a2f319", "ysrc": "getcharish:459:e3c757", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:c170b2", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:cc56f9", "sizemode": "area" }, "showlegend": true, "legendgroup": "Electrical/power disruption", "orientation": "v", "hovertextsrc": "getcharish:459:36d966", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Electrical/power disruption<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Water supply disruption", "type": "scatter", "xsrc": "getcharish:459:bbf81e", "ysrc": "getcharish:459:7f91c6", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:c30b44", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:745f70", "sizemode": "area" }, "showlegend": true, "legendgroup": "Water supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:eb5579", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Water supply disruption<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Waste supply disruption", "type": "scatter", "xsrc": "getcharish:459:d936b2", "ysrc": "getcharish:459:d708b8", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:0f2d88", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:165886", "sizemode": "area" }, "showlegend": true, "legendgroup": "Waste supply disruption", "orientation": "v", "hovertextsrc": "getcharish:459:6188a1", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Waste supply disruption<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Concession/delivery disruption", "type": "scatter", "xsrc": "getcharish:459:4c365c", "ysrc": "getcharish:459:3f95d9", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:459:55f192", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:459:584e40", "sizemode": "area" }, "showlegend": true, "legendgroup": "Concession/delivery disruption", "orientation": "v", "hovertextsrc": "getcharish:459:fb110c", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Concession/delivery disruption<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Interdependency risk" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:15:03.049036Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/186.embed", "fid": "getcharish:186", "filename": "dummyPhysicalRisksforMaximum temperature incidental", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/186/9_REFV5DX17WU2IJ9GU600W2K6GA4IDG.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/186/2_R4KB64RPSPWP3SNRIMDPSIMG8CHIQG.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/186/8_91XEKMP9C7B0BCR45F5GGLQXLHEVR3.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/186/9_REFV5DX17WU2IJ9GU600W2K6GA4IDG.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:186", "plots": "https://api.plotly.com/v2/plots/getcharish:186", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~getcharish/186/", "world_readable": true, "date_modified": "2024-04-22T14:56:30.800Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/186/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Local ecosystem changes", "type": "scatter", "xsrc": "getcharish:458:67c831", "ysrc": "getcharish:458:932c78", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:4a2c01", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:dd61af", "sizemode": "area" }, "showlegend": true, "legendgroup": "Local ecosystem changes", "orientation": "v", "hovertextsrc": "getcharish:458:b85bb3", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Local ecosystem changes<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased fire risk", "type": "scatter", "xsrc": "getcharish:458:c5066f", "ysrc": "getcharish:458:183c7d", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:352e57", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:86be9d", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased fire risk", "orientation": "v", "hovertextsrc": "getcharish:458:4079d5", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased fire risk<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased communicable diseases", "type": "scatter", "xsrc": "getcharish:458:5109dc", "ysrc": "getcharish:458:638182", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:c4a05d", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:9089da", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased communicable diseases", "orientation": "v", "hovertextsrc": "getcharish:458:ed2483", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased communicable diseases<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Changes to air currents", "type": "scatter", "xsrc": "getcharish:458:7ab4bc", "ysrc": "getcharish:458:149d15", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:39c8a1", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:fbb471", "sizemode": "area" }, "showlegend": true, "legendgroup": "Changes to air currents", "orientation": "v", "hovertextsrc": "getcharish:458:6bbf26", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Changes to air currents<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Local ecosystem changes", "type": "scatter", "xsrc": "getcharish:458:52d768", "ysrc": "getcharish:458:6cb413", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:425046", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:1bbd29", "sizemode": "area" }, "showlegend": true, "legendgroup": "Local ecosystem changes", "orientation": "v", "hovertextsrc": "getcharish:458:1bb2b2", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Local ecosystem changes<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased fire risk", "type": "scatter", "xsrc": "getcharish:458:02223c", "ysrc": "getcharish:458:49a97a", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:986512", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:fac894", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased fire risk", "orientation": "v", "hovertextsrc": "getcharish:458:89c82d", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased fire risk<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased communicable diseases", "type": "scatter", "xsrc": "getcharish:458:cb6edc", "ysrc": "getcharish:458:e0158d", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:735947", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:6ff8c5", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased communicable diseases", "orientation": "v", "hovertextsrc": "getcharish:458:e0f815", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased communicable diseases<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Changes to air currents", "type": "scatter", "xsrc": "getcharish:458:9d4694", "ysrc": "getcharish:458:ef274b", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:31013d", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:6f5ef5", "sizemode": "area" }, "showlegend": true, "legendgroup": "Changes to air currents", "orientation": "v", "hovertextsrc": "getcharish:458:65789e", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Changes to air currents<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Local ecosystem changes", "type": "scatter", "xsrc": "getcharish:458:7856b2", "ysrc": "getcharish:458:5b79a4", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:ac4c7d", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:c22b58", "sizemode": "area" }, "showlegend": true, "legendgroup": "Local ecosystem changes", "orientation": "v", "hovertextsrc": "getcharish:458:e679c4", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Local ecosystem changes<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased fire risk", "type": "scatter", "xsrc": "getcharish:458:9260ad", "ysrc": "getcharish:458:28eff0", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:9e9cbd", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:d525c2", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased fire risk", "orientation": "v", "hovertextsrc": "getcharish:458:951676", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased fire risk<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased communicable diseases", "type": "scatter", "xsrc": "getcharish:458:ac983f", "ysrc": "getcharish:458:907828", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:816161", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:ce1972", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased communicable diseases", "orientation": "v", "hovertextsrc": "getcharish:458:695646", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased communicable diseases<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Changes to air currents", "type": "scatter", "xsrc": "getcharish:458:b6d2ff", "ysrc": "getcharish:458:828b6d", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:b6dbfe", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:d4ada0", "sizemode": "area" }, "showlegend": true, "legendgroup": "Changes to air currents", "orientation": "v", "hovertextsrc": "getcharish:458:993502", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Changes to air currents<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Local ecosystem changes", "type": "scatter", "xsrc": "getcharish:458:58dcdb", "ysrc": "getcharish:458:2f6314", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:5ee181", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:bdc39c", "sizemode": "area" }, "showlegend": true, "legendgroup": "Local ecosystem changes", "orientation": "v", "hovertextsrc": "getcharish:458:2a0866", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Local ecosystem changes<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased fire risk", "type": "scatter", "xsrc": "getcharish:458:82a505", "ysrc": "getcharish:458:1e8ade", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:c56856", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:2a58df", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased fire risk", "orientation": "v", "hovertextsrc": "getcharish:458:82ccc1", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased fire risk<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Increased communicable diseases", "type": "scatter", "xsrc": "getcharish:458:92c081", "ysrc": "getcharish:458:1fb35d", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:367a81", "marker": { "color": "#00cc96", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:0e72f1", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased communicable diseases", "orientation": "v", "hovertextsrc": "getcharish:458:44e738", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased communicable diseases<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Changes to air currents", "type": "scatter", "xsrc": "getcharish:458:61b26a", "ysrc": "getcharish:458:55ff48", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:458:3e62d4", "marker": { "color": "#ab63fa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:458:8d3ef2", "sizemode": "area" }, "showlegend": true, "legendgroup": "Changes to air currents", "orientation": "v", "hovertextsrc": "getcharish:458:410ce0", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Changes to air currents<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Maximum temperature incidental" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:14:56.597189Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/184.embed", "fid": "getcharish:184", "filename": "dummyPhysicalRisksforCompound events", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/184/9_DBIGREZ0AD49GKEH9KLRM3GSYOMLGD.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/184/2_54ZCSLVK96ZX2V6H2SRNZBBDHV04A9.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/184/8_ZW3FBOCZLUQA7JW0ZFCZG4EWB65VGL.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/184/9_DBIGREZ0AD49GKEH9KLRM3GSYOMLGD.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:184", "plots": "https://api.plotly.com/v2/plots/getcharish:184", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~getcharish/184/", "world_readable": true, "date_modified": "2024-04-22T14:56:23.015Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/184/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Blizzard Conditions", "type": "scatter", "xsrc": "getcharish:457:8784d3", "ysrc": "getcharish:457:5aab36", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:f237db", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:084a80", "sizemode": "area" }, "showlegend": true, "legendgroup": "Blizzard Conditions", "orientation": "v", "hovertextsrc": "getcharish:457:dc0a71", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Blizzard Conditions<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Flight disruptions", "type": "scatter", "xsrc": "getcharish:457:00848b", "ysrc": "getcharish:457:7fbaa1", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:3f5aaa", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:08fb31", "sizemode": "area" }, "showlegend": true, "legendgroup": "Flight disruptions", "orientation": "v", "hovertextsrc": "getcharish:457:b9a601", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Flight disruptions<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Blizzard Conditions", "type": "scatter", "xsrc": "getcharish:457:1748b1", "ysrc": "getcharish:457:e0766f", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:5cacbf", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:9b14e5", "sizemode": "area" }, "showlegend": true, "legendgroup": "Blizzard Conditions", "orientation": "v", "hovertextsrc": "getcharish:457:63099c", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Blizzard Conditions<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Flight disruptions", "type": "scatter", "xsrc": "getcharish:457:d90782", "ysrc": "getcharish:457:001e55", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:a885c8", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:d17653", "sizemode": "area" }, "showlegend": true, "legendgroup": "Flight disruptions", "orientation": "v", "hovertextsrc": "getcharish:457:f7be02", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Flight disruptions<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Blizzard Conditions", "type": "scatter", "xsrc": "getcharish:457:6ac218", "ysrc": "getcharish:457:3ac781", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:2de63d", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:e8a710", "sizemode": "area" }, "showlegend": true, "legendgroup": "Blizzard Conditions", "orientation": "v", "hovertextsrc": "getcharish:457:f7b617", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Blizzard Conditions<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Flight disruptions", "type": "scatter", "xsrc": "getcharish:457:8fb8d3", "ysrc": "getcharish:457:583475", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:b6746a", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:abea55", "sizemode": "area" }, "showlegend": true, "legendgroup": "Flight disruptions", "orientation": "v", "hovertextsrc": "getcharish:457:259241", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Flight disruptions<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Blizzard Conditions", "type": "scatter", "xsrc": "getcharish:457:9cee5e", "ysrc": "getcharish:457:6156c2", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:b4a5d5", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:ee3460", "sizemode": "area" }, "showlegend": true, "legendgroup": "Blizzard Conditions", "orientation": "v", "hovertextsrc": "getcharish:457:baf2c8", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Blizzard Conditions<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Flight disruptions", "type": "scatter", "xsrc": "getcharish:457:dbc40c", "ysrc": "getcharish:457:f78324", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:457:5ace49", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.016666666666666666, "sizesrc": "getcharish:457:ed0b07", "sizemode": "area" }, "showlegend": true, "legendgroup": "Flight disruptions", "orientation": "v", "hovertextsrc": "getcharish:457:c28ef0", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Flight disruptions<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Compound events" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:14:51.343263Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/182.embed", "fid": "getcharish:182", "filename": "dummyPhysicalRisksforLightning|thunderstorms", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/182/9_H026XY13QXK47C2RTKVWECOVADNW0P.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/182/2_DUVHC9UUNBT7ANUFVVUY2GNSKSWJ4S.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/182/8_NWVKGUYSIKLTTEU81KG6JZ7QOJJCSR.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/182/9_H026XY13QXK47C2RTKVWECOVADNW0P.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:182", "plots": "https://api.plotly.com/v2/plots/getcharish:182", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~getcharish/182/", "world_readable": true, "date_modified": "2024-04-22T14:56:15.662Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/182/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Lightning/Thunderstorms", "type": "scatter", "xsrc": "getcharish:456:4e3025", "ysrc": "getcharish:456:5cdbf9", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:456:f096fc", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:456:1283a2", "sizemode": "area" }, "showlegend": true, "legendgroup": "Lightning/Thunderstorms", "orientation": "v", "hovertextsrc": "getcharish:456:09ca69", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Lightning/Thunderstorms<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Lightning/Thunderstorms", "type": "scatter", "xsrc": "getcharish:456:034889", "ysrc": "getcharish:456:53b4ba", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:456:8a45a1", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:456:f1bd24", "sizemode": "area" }, "showlegend": true, "legendgroup": "Lightning/Thunderstorms", "orientation": "v", "hovertextsrc": "getcharish:456:33f6e5", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Lightning/Thunderstorms<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Lightning/Thunderstorms", "type": "scatter", "xsrc": "getcharish:456:fd4eca", "ysrc": "getcharish:456:b1dc5a", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:456:075218", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:456:e0939e", "sizemode": "area" }, "showlegend": true, "legendgroup": "Lightning/Thunderstorms", "orientation": "v", "hovertextsrc": "getcharish:456:e89d2e", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Lightning/Thunderstorms<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Lightning/Thunderstorms", "type": "scatter", "xsrc": "getcharish:456:17e473", "ysrc": "getcharish:456:7833f2", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:456:7c85c6", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:456:9b656d", "sizemode": "area" }, "showlegend": true, "legendgroup": "Lightning/Thunderstorms", "orientation": "v", "hovertextsrc": "getcharish:456:cb5fba", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Lightning/Thunderstorms<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Lightning/thunderstorms" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:14:46.216001Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/180.embed", "fid": "getcharish:180", "filename": "dummyPhysicalRisksforLow visibility", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/180/9_4W7E8VMNWC9U7BOKM12GE7QD9SNPMR.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/180/2_95Y6T1JIYB807YMAZDW1EKT8IG2GYW.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/180/8_7SM6GSOXV06DLQITOG0L39W4929ERN.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/180/9_4W7E8VMNWC9U7BOKM12GE7QD9SNPMR.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:180", "plots": "https://api.plotly.com/v2/plots/getcharish:180", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~getcharish/180/", "world_readable": true, "date_modified": "2024-04-22T14:56:07.653Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/180/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Low Visibility", "type": "scatter", "xsrc": "getcharish:455:45c33d", "ysrc": "getcharish:455:76a03c", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:455:21a1df", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:455:19cc2a", "sizemode": "area" }, "showlegend": true, "legendgroup": "Low Visibility", "orientation": "v", "hovertextsrc": "getcharish:455:be102c", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Low Visibility<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Low Visibility", "type": "scatter", "xsrc": "getcharish:455:e8c54d", "ysrc": "getcharish:455:d3666b", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:455:c00e00", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:455:00ce65", "sizemode": "area" }, "showlegend": true, "legendgroup": "Low Visibility", "orientation": "v", "hovertextsrc": "getcharish:455:fe1b5b", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Low Visibility<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Low Visibility", "type": "scatter", "xsrc": "getcharish:455:d18356", "ysrc": "getcharish:455:df58db", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:455:4639be", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:455:f0de83", "sizemode": "area" }, "showlegend": true, "legendgroup": "Low Visibility", "orientation": "v", "hovertextsrc": "getcharish:455:cf7bf9", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Low Visibility<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Low Visibility", "type": "scatter", "xsrc": "getcharish:455:8639a8", "ysrc": "getcharish:455:8f834f", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:455:9c7a08", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.0125, "sizesrc": "getcharish:455:d03785", "sizemode": "area" }, "showlegend": true, "legendgroup": "Low Visibility", "orientation": "v", "hovertextsrc": "getcharish:455:70489c", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Low Visibility<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Low visibility" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:14:39.464075Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/178.embed", "fid": "getcharish:178", "filename": "dummyPhysicalRisksforExtreme cold", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/178/9_17JSRAJ0ILI95I0Y3ZV40JTKFBE686.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/178/2_QCJFWJE39AO1NOQ45N9IX86HQF5OY8.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/178/8_HWLHFT8E84GBXG662DLRU56QGLFLJG.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/178/9_17JSRAJ0ILI95I0Y3ZV40JTKFBE686.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:178", "plots": "https://api.plotly.com/v2/plots/getcharish:178", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~getcharish/178/", "world_readable": true, "date_modified": "2024-04-22T14:56:00.324Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/178/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Extreme Cold (De-icing)", "type": "scatter", "xsrc": "getcharish:454:bb47a9", "ysrc": "getcharish:454:3b7d5b", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:7fa248", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:a8da33", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (De-icing)", "orientation": "v", "hovertextsrc": "getcharish:454:3809a1", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (De-icing)<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Extreme Cold (Closure)", "type": "scatter", "xsrc": "getcharish:454:8f72c8", "ysrc": "getcharish:454:a0e541", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:672566", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:be184b", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (Closure)", "orientation": "v", "hovertextsrc": "getcharish:454:fb46ce", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (Closure)<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Extreme Cold (De-icing)", "type": "scatter", "xsrc": "getcharish:454:9274e2", "ysrc": "getcharish:454:313b65", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:2d1997", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:153197", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (De-icing)", "orientation": "v", "hovertextsrc": "getcharish:454:73dba6", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (De-icing)<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Extreme Cold (Closure)", "type": "scatter", "xsrc": "getcharish:454:fbcf2c", "ysrc": "getcharish:454:048855", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:611f7c", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:3364ac", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (Closure)", "orientation": "v", "hovertextsrc": "getcharish:454:5c8e7c", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (Closure)<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Extreme Cold (De-icing)", "type": "scatter", "xsrc": "getcharish:454:a9ce1c", "ysrc": "getcharish:454:5752c7", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:6f4487", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:aba7b5", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (De-icing)", "orientation": "v", "hovertextsrc": "getcharish:454:22727e", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (De-icing)<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Extreme Cold (Closure)", "type": "scatter", "xsrc": "getcharish:454:440744", "ysrc": "getcharish:454:d89d53", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:b3194b", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:6813cf", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (Closure)", "orientation": "v", "hovertextsrc": "getcharish:454:8199ed", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (Closure)<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Extreme Cold (De-icing)", "type": "scatter", "xsrc": "getcharish:454:235296", "ysrc": "getcharish:454:704ff1", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:1a0010", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:76efa1", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (De-icing)", "orientation": "v", "hovertextsrc": "getcharish:454:65ffdf", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (De-icing)<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" }, { "mode": "markers", "name": "Extreme Cold (Closure)", "type": "scatter", "xsrc": "getcharish:454:4b2dd2", "ysrc": "getcharish:454:a5cda8", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:454:2ea575", "marker": { "color": "#EF553B", "symbol": "circle", "opacity": 0.7, "sizeref": 0.20833333333333334, "sizesrc": "getcharish:454:ce1970", "sizemode": "area" }, "showlegend": true, "legendgroup": "Extreme Cold (Closure)", "orientation": "v", "hovertextsrc": "getcharish:454:120b51", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Extreme Cold (Closure)<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Extreme cold" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-19T11:14:34.063422Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~getcharish/176.embed", "fid": "getcharish:176", "filename": "dummyPhysicalRisksforSnowfall", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/getcharish/176/9_OKQLI5P9F3TVL1II9QF16JCYDFDC37.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/getcharish/176/2_4P1TR4CQUOQ5HYZGQYSSY2MDTF5CGH.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/176/8_Q0EJJVDLK9WKZC1R0UA7HLGYSTM4Y8.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/getcharish/176/9_OKQLI5P9F3TVL1II9QF16JCYDFDC37.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/getcharish:176", "plots": "https://api.plotly.com/v2/plots/getcharish:176", "parent": "https://api.plotly.com/v2/folders/home?user=getcharish" }, "owner": "getcharish", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~getcharish/176/", "world_readable": true, "date_modified": "2024-04-22T14:55:52.570Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~getcharish/176/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Increased Snowfall", "type": "scatter", "xsrc": "getcharish:453:abea23", "ysrc": "getcharish:453:cbe575", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:453:9df093", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.075, "sizesrc": "getcharish:453:a4c15f", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased Snowfall", "orientation": "v", "hovertextsrc": "getcharish:453:1c72b5", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased Snowfall<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Increased Snowfall", "type": "scatter", "xsrc": "getcharish:453:125ae3", "ysrc": "getcharish:453:5622e4", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:453:ad3081", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.075, "sizesrc": "getcharish:453:d3df76", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased Snowfall", "orientation": "v", "hovertextsrc": "getcharish:453:b7c4bd", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased Snowfall<br>epoch=2020<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2020" }, { "data": [ { "mode": "markers", "name": "Increased Snowfall", "type": "scatter", "xsrc": "getcharish:453:e2c959", "ysrc": "getcharish:453:7703b4", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:453:a0d186", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.075, "sizesrc": "getcharish:453:f062d2", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased Snowfall", "orientation": "v", "hovertextsrc": "getcharish:453:895aac", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased Snowfall<br>epoch=2030<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2030" }, { "data": [ { "mode": "markers", "name": "Increased Snowfall", "type": "scatter", "xsrc": "getcharish:453:8e10a4", "ysrc": "getcharish:453:fb8098", "xaxis": "x", "yaxis": "y", "idssrc": "getcharish:453:d353ee", "marker": { "color": "#636efa", "symbol": "circle", "opacity": 0.7, "sizeref": 0.075, "sizesrc": "getcharish:453:9b40f0", "sizemode": "area" }, "showlegend": true, "legendgroup": "Increased Snowfall", "orientation": "v", "hovertextsrc": "getcharish:453:2d8c5e", "hovertemplate": "<b>%{hovertext}</b><br><br>label=Increased Snowfall<br>epoch=2070<br>likelihood=%{x}<br>consequence=%{y}<br>weight=%{marker.size}<extra></extra>" } ], "name": "2070" } ], "layout": { "title": { "text": "disclosure = Snowfall" }, "xaxis": { "range": [ 0, 8 ], "title": { "text": "likelihood" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "range": [ 0, 7 ], "title": { "text": "consequence" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "label" }, "itemsizing": "constant", "tracegroupgap": 0 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 60 }, "steps": [ { "args": [ [ "2020" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2020", "method": "animate" }, { "args": [ [ "2030" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2030", "method": "animate" }, { "args": [ [ "2070" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "2070", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "currentvalue": { "prefix": "epoch=" } } ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 70 }, "type": "buttons", "buttons": [ { "args": [ null, { "mode": "immediate", "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "linear", "duration": 500 }, "fromcurrent": true } ], "label": "▶", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "easing": "linear", "duration": 0 }, "fromcurrent": true } ], "label": "◼", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~getcharish", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/83.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-07-24 12:58:10", "mapbox_access_tokens": null, "has_password": null, "username": "getcharish", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
